Exercises in the IPy Notebook

In the following exercises, the "examples" are completed for you and the "problems" are for you to try. Each problem can be solved by a method very similar to the associated example.

In [1]:
from numpy import *

example 1 (simultaneous equations)

Solve the following equations for $x$ and $y$:

$5x+4y=-1$

$-7x-2y=-13$

solution:

There are several ways to solve simultaneous equatiions. Here we use the matrix method for solving linear systems of equations. It amounts to writing the two equations as a $2\times 2$ matrix of coefficients times a $2\times1$ vector of variables.

So

$$Ax + By = E\\ Cx + Dy = F $$

is written as

$$\begin{bmatrix}A & B \\ C & D \end{bmatrix} \begin{bmatrix} x\\ y\end{bmatrix} = \begin{bmatrix} E\\ F\end{bmatrix} $$

To get our problem in this form, write

$$\begin{bmatrix}5 & 4 \\ -7 & -2 \end{bmatrix} \begin{bmatrix} x\\ y\end{bmatrix} = \begin{bmatrix} -1\\ -13\end{bmatrix} $$

This is solved this with the linalg (i.e., linear algebra) routines as follows.

In [2]:
CC = array(((  5.,  4. ),
            ( -7., -2. ) ))
SS = array(( -1., -13. ))
solution = linalg.solve(CC,SS)
print(solution)

[ 3. -4.]

That is, $x=3$ and $y=-4$ solve our system of equations.

problem 1 (simultaneous equations)

Solve the following equations for $x$, $y$ and $z$:

$2x+-y+3z=37$

$x+y-3z=-16$

$-3x+5z=24$

In [ ]:

(solution: $x=7$, $y=4$, $z=9$)

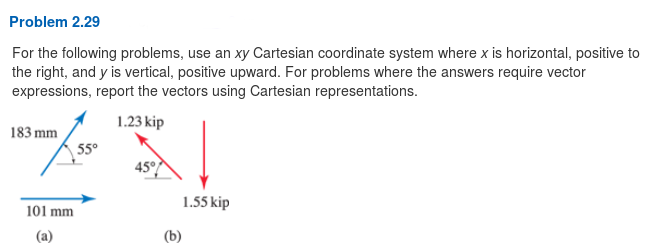

example 2 (vector addition)

Add the two vectors shown.

In [3]:
dtr = pi/180.  # a factor to convert degrees to radians
# part a
R1 = 183.*array(( cos(55*dtr), sin(55*dtr) ))  # mm
R2 = array(( 101., 0. ))                       # mm
R = R1+R2
print ('a. vector sum', R, 'mm')

a. vector sum [205.96448785 149.9048241 ] mm
In [4]:
# part b
R1 = 1.23*array(( -cos(45*dtr), sin(45*dtr) ))   # kip
R2 = array(( 0., -1.55 ))                        # kip
R = R1+R2
print ('b. vector sum', R, 'kip')

b. vector sum [-0.86974134 -0.68025866] kip

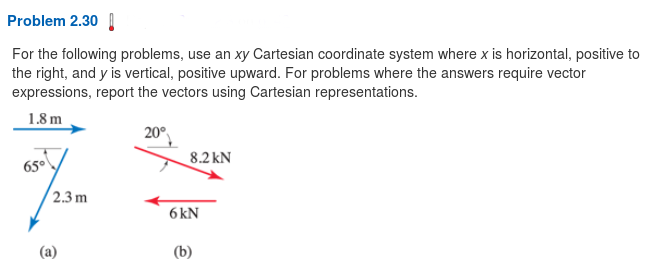

problem 2 (vector addition)

Add the two vectors shown.

In [ ]:

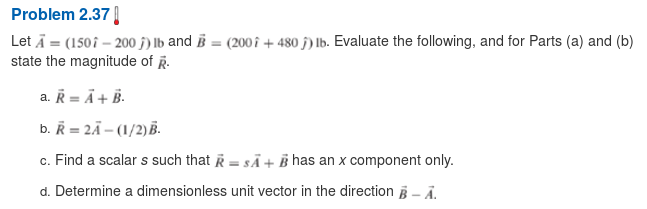

example 3 (vector algebra)

In [5]:
A = array(( 150., -200. ))   # lb
B = array(( 200.,  480. ))   # lb

# part a
R = A+B
R_mag = sqrt( sum(R**2) )
print ('a. R=A+B=',R)
print ('   magnitude of R=',R_mag,'lb')

a. R=A+B= [350. 280.]
   magnitude of R= 448.2186966202994 lb
In [6]:
# part b
R = 2*A - (1/2)*B
R_mag = sqrt( sum(R**2) )
print ('b. R=2A-(1/2)B=',R)
print ('   magnitude of R=',R_mag,'lb')

b. R=2A-(1/2)B= [ 200. -640.]
   magnitude of R= 670.5221845696084 lb

To do part (c), solve for $s$ when the $y$ component of $\vec{R}$ is 0.

$R_y = s A_y + B_y = 0$

so

$s = -\frac{B_y}{A_y}$

In [7]:
# part c
s = - B[1]/A[1]
print ('c. s=',s)

c. s= 2.4

For part (d), first compute $\vec{C} = \vec{B}-\vec{A}$, then get its magnitude $\left | \vec{C} \right |$.

Finally, find the unit vector with $\hat{u} = \frac{\vec{C}}{\left | \vec{C} \right |}$.

In [8]:
# part d
C = B-A
C_mag = sqrt(sum(C**2))
u = C / C_mag
print ('d. unit vector=',u)

d. unit vector= [0.07333144 0.99730763]

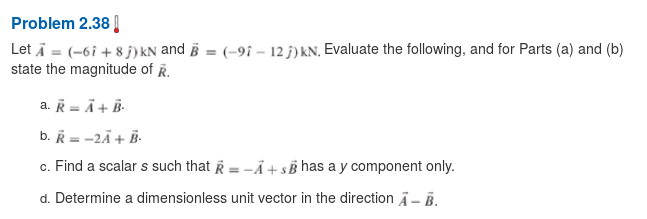

problem 3 (vector algebra)

In [ ]:

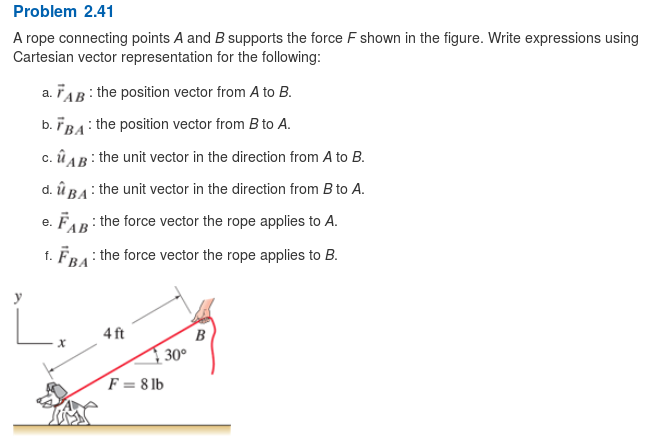

example 4 (unit vectors)

In [9]:
rAB = 4.*array(( cos(30*dtr), sin(30*dtr) ))   # ft
rBA = -rAB
uAB = rAB / sqrt(sum(rAB**2))
uBA = -uAB
FAB = 8.*uAB  # lb
FBA = 8.*uBA  # lb
print ('a. rAB=',rAB,'ft')
print ('b. rBA=',rBA,'ft')
print ('c. uAB=',uAB)
print ('d. uBA=',uBA)
print ('e. FAB=',FAB,'lb')
print ('f. FBA=',FBA,'lb')

a. rAB= [3.46410162 2.        ] ft
b. rBA= [-3.46410162 -2.        ] ft
c. uAB= [0.8660254 0.5      ]
d. uBA= [-0.8660254 -0.5      ]
e. FAB= [6.92820323 4.        ] lb
f. FBA= [-6.92820323 -4.        ] lb

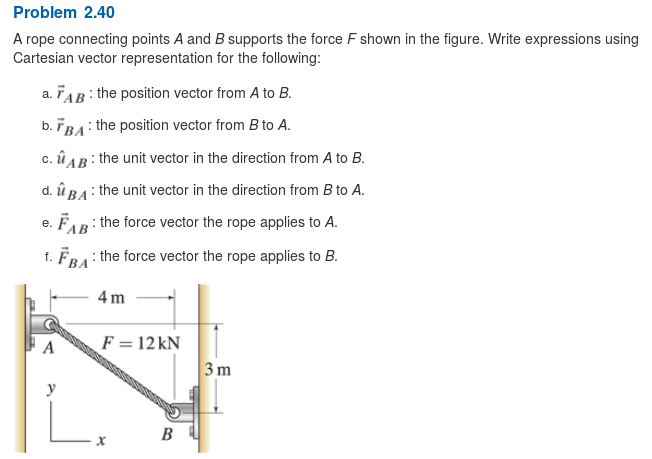

problem 4 (unit vectors)

In [ ]:

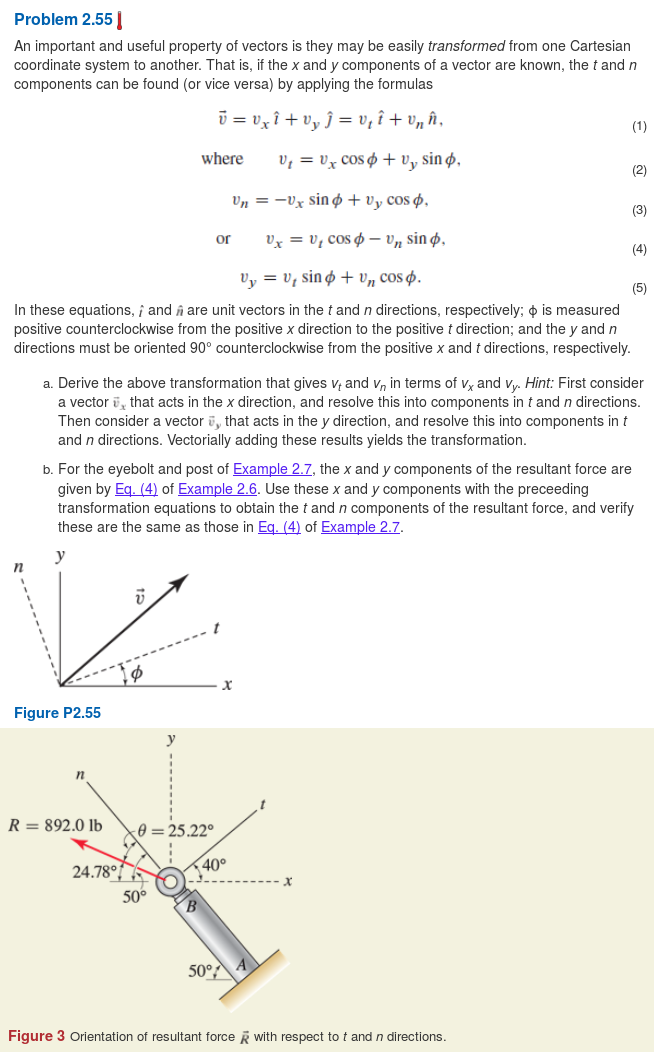

example 5 (vector rotation)

Vector rotations are effected by multiplying the vector by the matrix of trig functions described above. For coordinate rotation through angle $\phi$:

$$ \begin{bmatrix}v_t\\ v_n\end{bmatrix} = \begin{bmatrix} \cos \phi & \sin \phi \\ -\sin \phi & \cos \phi \end{bmatrix} \begin{bmatrix}v_x\\ v_y\end{bmatrix} $$
In [10]:
R = 892.0 * array(( -cos(24.78*dtr), sin(24.78*dtr) ))
phi = 40. * dtr            # coordinate rotation angle, radians
rot = matrix(((cos(phi),sin(phi)),(-sin(phi),cos(phi))))
print ('original vector R=',R,'lb')
print ('rotation matrix=\n',rot)

original vector R= [-809.86806494  373.86858304] lb
rotation matrix=
 [[ 0.76604444  0.64278761]
 [-0.64278761  0.76604444]]

Multiplication of a matrix and a vector is done with the dot function. The solution agrees with the result of example 2.7 in the text.

In [11]:
print ('rotated vector=', dot(rot,R), 'lb')

rotated vector= [[-380.07683798  806.97310812]] lb

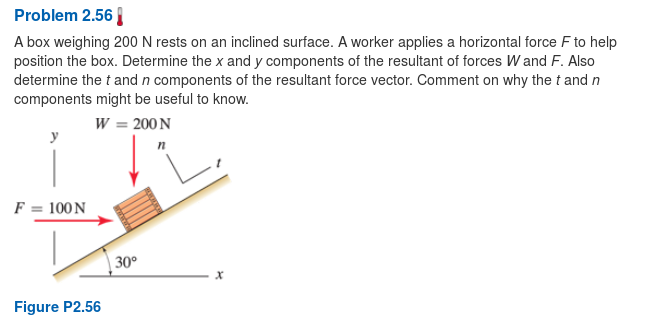

problem 5 (vector rotation)

In [ ]:

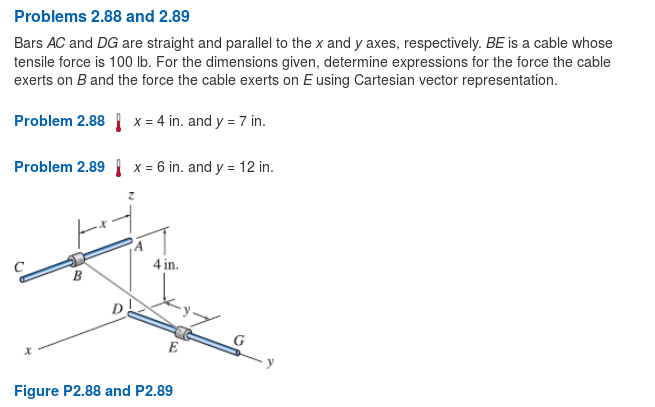

example 6 (unit vectors)

In [12]:
x = 6.  # in
y = 12. # in
rOB = array(( x, 0, 4. ))
rOE = array(( 0, y, 0. ))
rBE = rOE - rOB
uBE = rBE / sqrt(sum(rBE**2))  # unit vector pointing from B to E
FBE = 100.*uBE
FEB = -FBE
print ('force the cable exerts on B is',FBE,'lb')
print ('force the cable exerts on E is',FEB,'lb')

force the cable exerts on B is [-42.85714286  85.71428571 -28.57142857] lb
force the cable exerts on E is [ 42.85714286 -85.71428571  28.57142857] lb

problem 6 (unit vectors)

See problem 9, above. Use the parameters for 2.88.

In [ ]:

example 7 (dot product)

In [13]:
A = array(( -1.,  8., 4. ))  # N
B = array((  1., 18.,-6. ))  # mm
AdotB = dot(A,B)
A_mag = sqrt(sum(A**2))
B_mag = sqrt(sum(B**2))
uA = A / A_mag   # unit vector
uB = B / B_mag   # unit vector
cos_AB = arccos( dot(uA,uB) ) / dtr  # angle in degrees
A_para_mag = dot(A,uB)
A_para = A_para_mag*uB
A_perp = A - A_para
A_perp_mag = sqrt(sum(A_perp**2))
print ('a. angle between vectors=',cos_AB,'degrees')
print ('b. component of A parallel to B=',A_para_mag,'N')
print ('   component of A perpendicular to B=',A_perp_mag,'N')
print ('c. vector component of A parallel to B=',A_para,'N')
print ('   vector component of A perpendicular to B=',A_perp,'N')

a. angle between vectors= 45.90050773774112 degrees
b. component of A parallel to B= 6.2631578947368425 N
   component of A perpendicular to B= 6.4631921823194745 N
c. vector component of A parallel to B= [ 0.32963989  5.93351801 -1.97783934] N
   vector component of A perpendicular to B= [-1.32963989  2.06648199  5.97783934] N

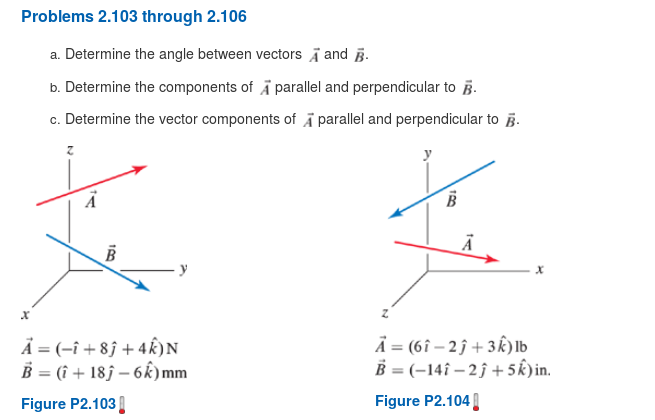

problem 7 (dot product)

See example 7 above. Use figure P2.104.

In [ ]:

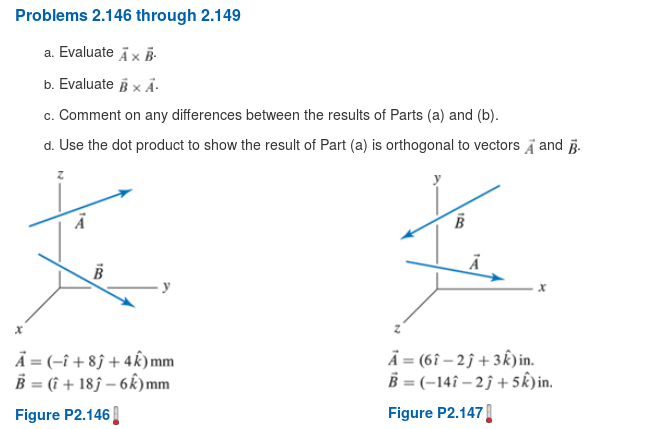

example 8 (cross product)

In [14]:
A = array((  6., -2., 3. ))  # in
B = array((-14., -2., 5. ))  # in
C = cross(A,B)
print ('a. AxB=',C,'in^2')
print ('b. BxA=',cross(B,A),'in^2')
print ('c. the cross product appears to be anti-commutative...!')
print ('d. dot products:',dot(A,C),'and',dot(B,C))

a. AxB= [ -4. -72. -40.] in^2
b. BxA= [ 4. 72. 40.] in^2
c. the cross product appears to be anti-commutative...!
d. dot products: 0.0 and 0.0
In [ ]:

problem 8 (cross product)

(book problem 2.146)

See example 8 above. Use figure P2.146.

In [ ]:
